Modular Gas Filling, Dispensing and Pumping Station with a Pump of FAS NZ 36-8 Type and One Tank of 20 NS Type with a Rated Capacity of 20.0 m³

1. FEM Modular Process System No. 93.0110/20

According to drawing No. _____, it is applied for propane/butane pumping based on a pumping unit of NZ 36-8 type, for connecting to one aboveground tank, with a self-fuelling function.

The System Consists of the Following Main Components:

• NZ 36-8 type pumping unit for propane/butane with multifunction gland sealing and a capacity of 100 L/min, at a differential pressure of 14 bar under 1500 rpm;
• Input: DN 50, PN 40, DIN 2635;
• Output: DN 32, PN 40, DIN 2635;
• Explosion-proof electric motor of 5.5 kW, EEx e II T3, 230/400V, 50 Hz, IP 55, 1500 rpm, with coupling and protective casing.

Basic Package:

• Liquid phase inlet DN50 with a ball valve DN50;
• Liquid phase outlet DN25 with a ball valve DN25 and a check valve;
• Bypass line with a valve;
• By-pass pipe outlet with a ball valve DN25 on the tank connection line;
• Vapour phase pipe with a ball valve DN20 on the tank connection line;
• Vapour phase compensating pipe assembly DN20 with a filling coupling M 60x4.0, left-hand, with a protective cover;
• Filling pipe DN50 with a ball valve DN50, a check valve and a screwed coupling M 60x4, left-hand, with a protective cover;
• Strainer DN50 on a suction pipe;
• Shut-off, relief and control valves installed in accordance with the existing regulations;
• START/STOP explosion-proof push-button panel;
• Instrumentation and monitoring equipment;
• Discharge system of “Candle” type.

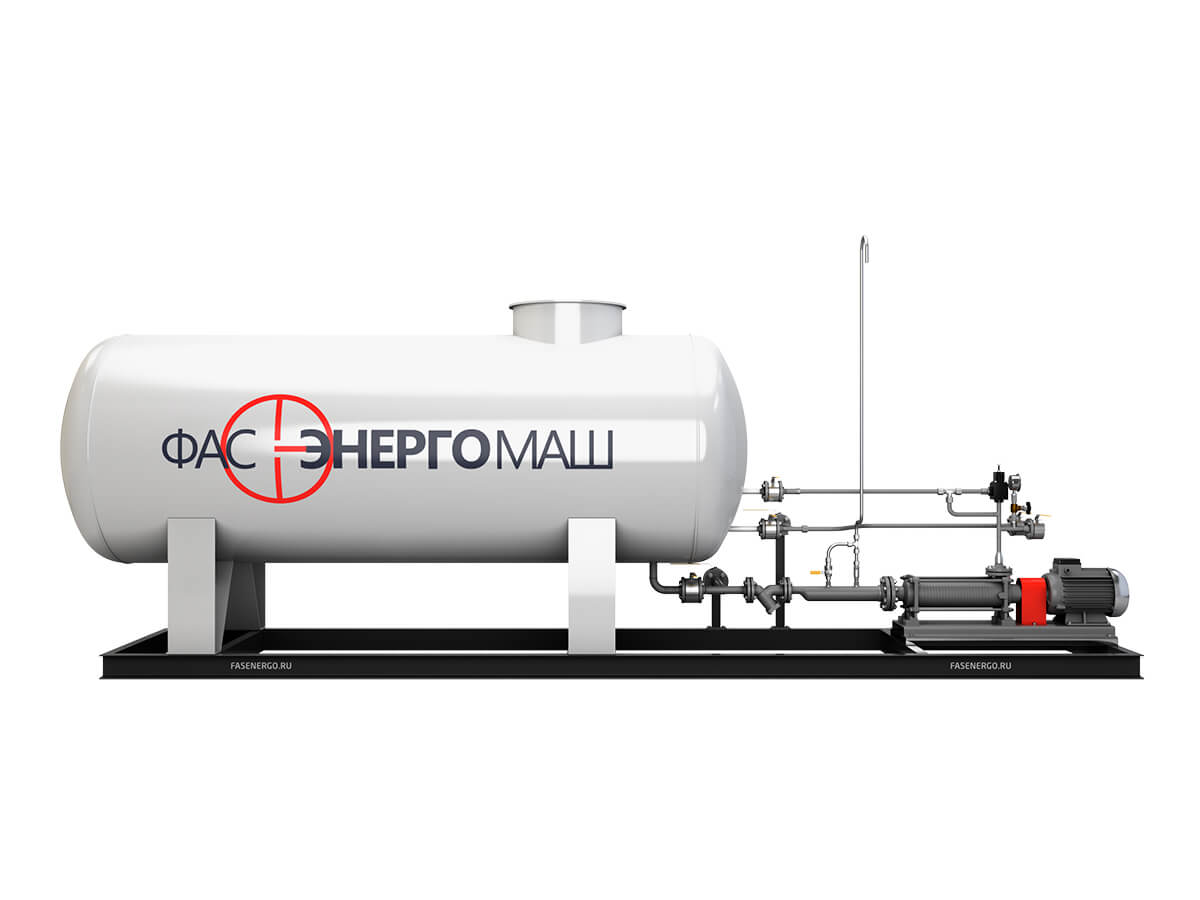

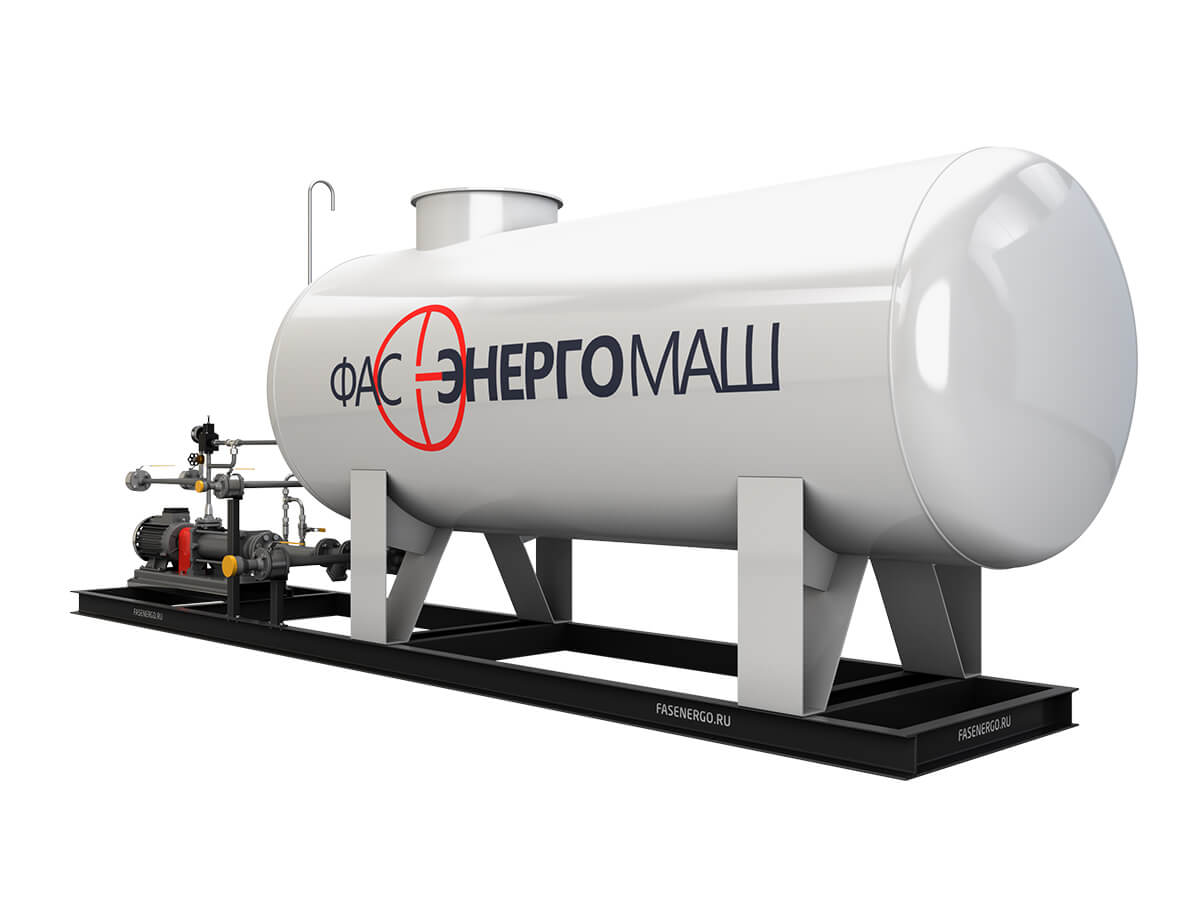

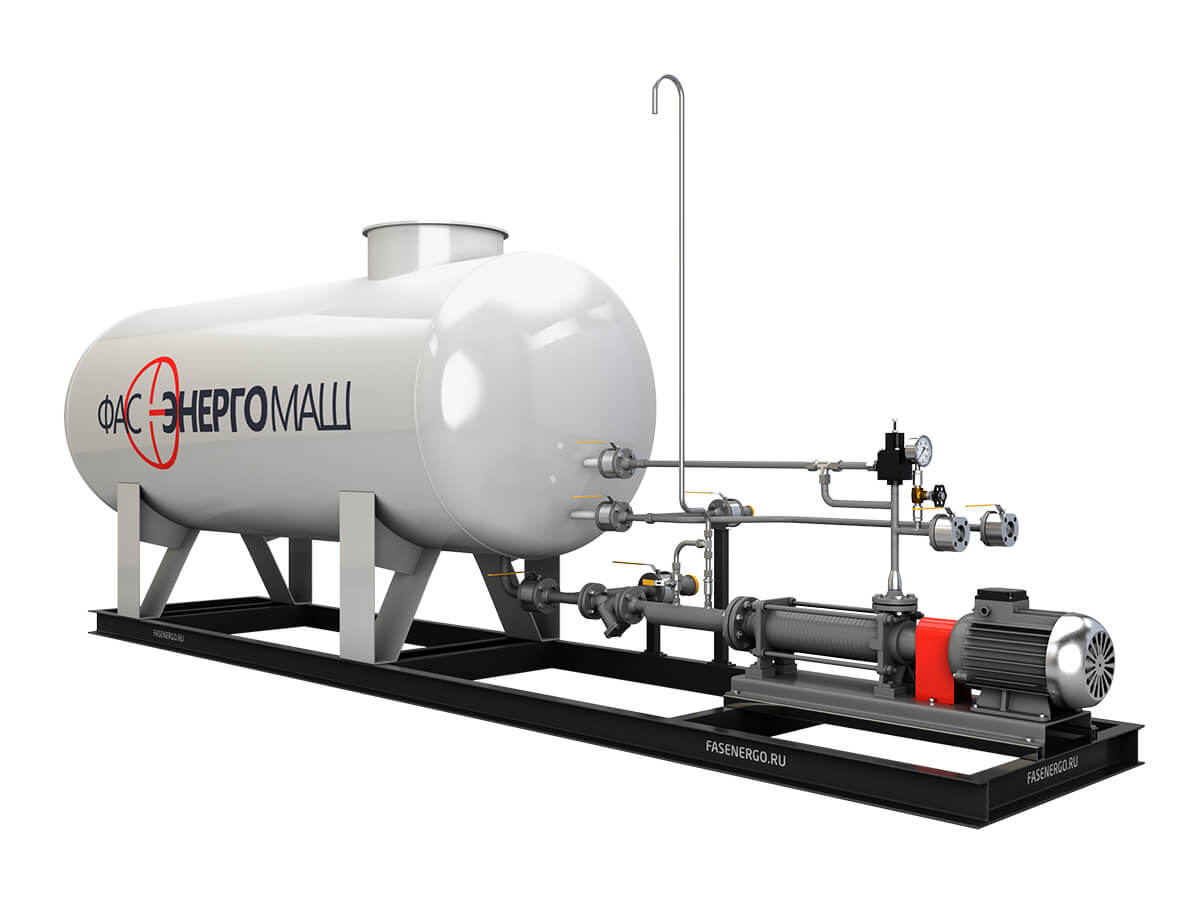

The system is assembled on a common frame with the possibility of subsequent installation of an electronic FAS (FASENERGOMASH or similar) gas dispenser thereon. Primed and painted.

---

2. Tank of 20-NS Type for System Connection with a Rated Capacity of 20.0 m³ for Aboveground Installation

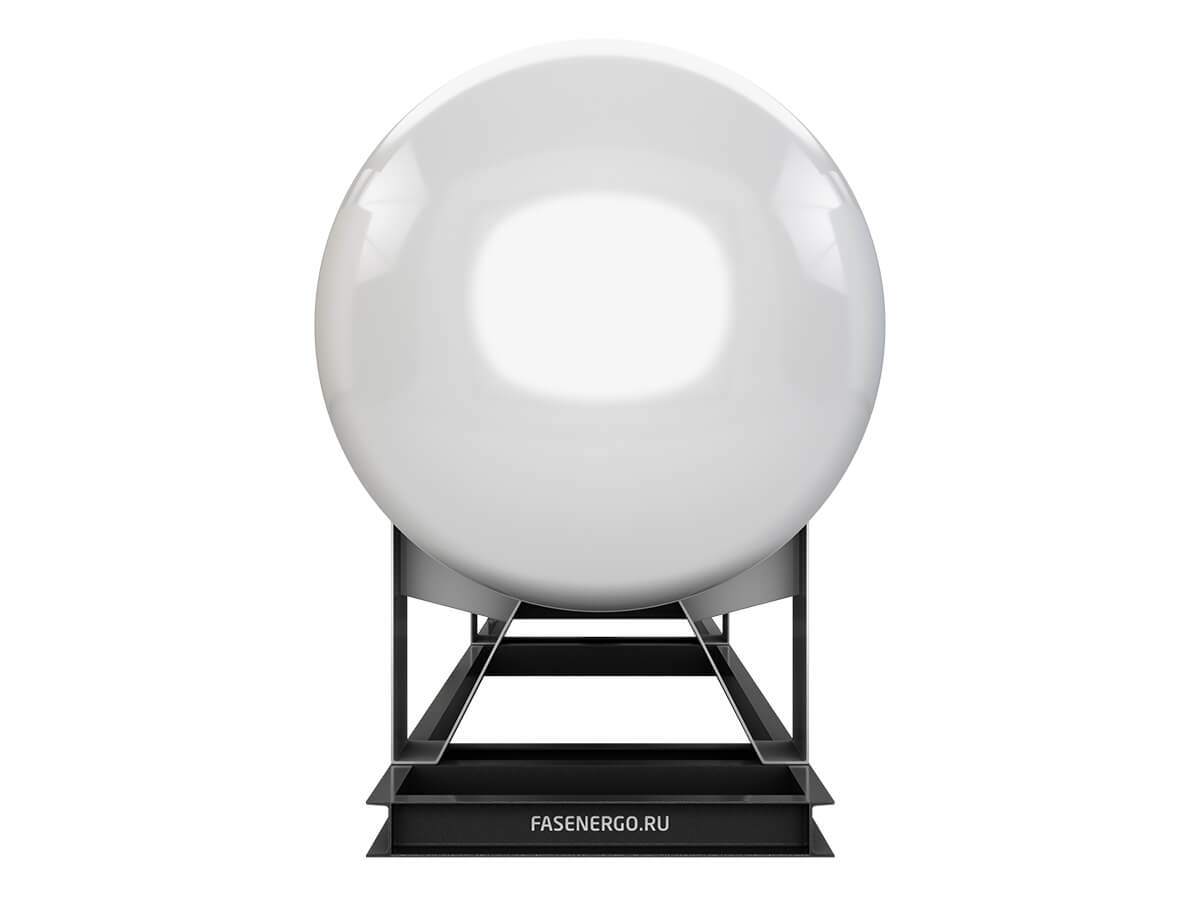

Tank diameter 1,600 mm; inspection window DN 500; operating temperature -40 / +40 °C; operating pressure 1.48 MPa; weatherproof corrosion-resistant coating of the outer tank surface.

Basic Package:

• Relief valve with a shut-off valve and a gasket, 2 pcs;
• Fill-up valve;
• Vapour phase recovery valve with a speed valve;
• Angle valve for liquid phase intake with a speed valve;
• Overflow pipe;
• Pressure gauge with a casing diameter 63 mm;
• Mechanical level gauge;
• Flanged socket DN 50 for tank discharging and charging with LPG liquid phase;
• Flanged socket DN 20 for LPG vapour phase discharging;
• Flanged socket DN 25 for a bypass line;
• Female connector G3/4”;
• Tank supports for understructure installation.

---

3. Electrical Control Panel FAS No. 26.1105/1 for Mounting Outside the Explosion Hazardous Area

Adapted for Connection with:

• Fuel dispenser of FAS (FAS - 120, 220, 230), FASENERGOMASH (series 100, 200, 300, 400, 500), or Wayne-Dresser types.;
• Electric motor of a pumping unit (up to 5.5 kW, 400 V) with a smooth starting function.

Equipped with:

• Network availability indication on the front panel;
• START and STOP buttons for one electric motor;
• Accident indication;
• Control panel unlock button in the event of alarm signal activation;
• A bus for connecting the response device of the dry-running sensor and the external fire alarm;
• Connection of up to 2 external START and STOP control buttons;
• Terminals for connecting external sound and light alarms.

---

---

4. Auxiliary Equipment for Gas Filling Stations

When Ordering a Tank:

• Flanged socket DN 50 for a PMP level gauge;
• Flanged socket DN 80 for a PMP level gauge with a density control;
• Fitting DN 100 for “String” system installation;
• Fitting DN 200 for “String” system installation;
• Fitting 3/4" NPT for VEGA level gauge installation;
• Thermal insulation of tank.

Equipment:

• Electronic level gauges of PMP, STRING, VEGA, OPW types;
• Automation sets;
• UZA road tanker earthing devices.

Electronic Fuel Dispensers:

• FAS series: 120, 220, 230;
• FASENERGOMASH series: 100, 200, 300, 400, 500.

Electronic fuel dispensers are available here:

Electronic Fuel Dispensers

* The arrangement of elements may differ from those shown in the pictures. FASENERGOMASH, LLC reserves the right to introduce technical changes.
